Newmar Phase Three Battery Charger 12VDC 7A

Model: PT-7

Input 88-132 or 176-264VAC, 50-60Hz
Output 12VDC @ 7A, 2-Bank
Weight 3.2 lbs

Product Overview
Newmar Phase Three battery chargers feature a “Smart”technology available in a wide range of power levels, allowing you to select the right size, features and flexibility you require for virtually any application.

Standard Features :
  • “Smart” circuitry provides three stage charging: bulk, absorption, float.
  • Wide model range covers battery system ratings from 14 - 950 amp-hours..
  • Gel-Cell/Flooded Lead-Acid/AGM battery type switch selects optimum charge/float voltages.
  • Multiple isolated output banks; ammeter indicates total output current (except PT-7).
  • Optional sensor adjusts output voltage based on battery temperature (except PT-7).
  • Current limiting prevents damage from overloading.
  • Charger status clearly displayed with LED and/or audible indicators or optional remote panel.
  • Use as a power supply - can power loads without a battery in line.
  • Built to last - rugged stainless steel case with a durable white powder coat finish with drip shield and polyurethane coated internal circuitry.
  • Numerous safety and EMC compliances.
  • Two year parts and labor warranty.
Model Input Voltage VAC Output Voltage VDC Others Availability Qty Price
PT-7 120VAC 12VDC
  • Output Power: 7 Amps
Request Lead time
  • $358.00
PT-14W 90-265VAC 12VDC
  • Output Power: 14 Amps
Request Lead time
  • $710.00

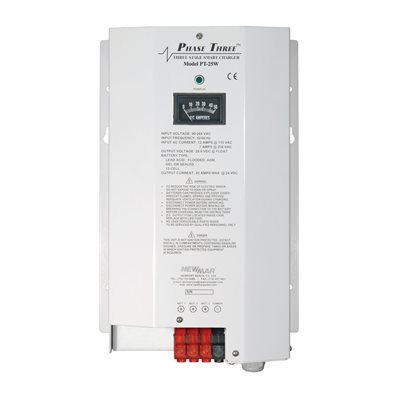

PT-25W 90-265VAC 12VDC
  • Output Power: 25 Amps
Request Lead time
  • $855.00

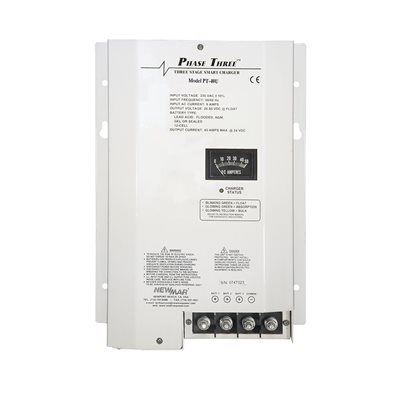

PT-40U 90-265VAC 12VDC
  • Output Power: 40 Amps
Request Lead time
  • $1,392.00

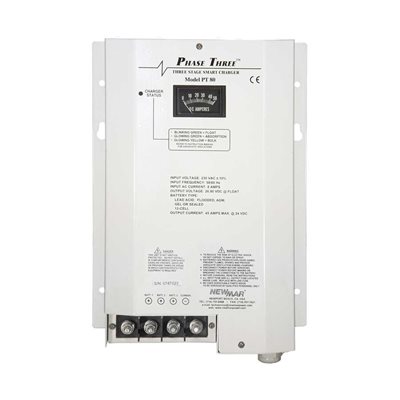

PT-80 90-265VAC 12VDC
  • Output Power: 80 Amps
Request Lead time
  • $2,287.00
PT-24-8W 90-265VAC 24VDC
  • Output Power: 8 Amps
Request Lead time
  • $732.00

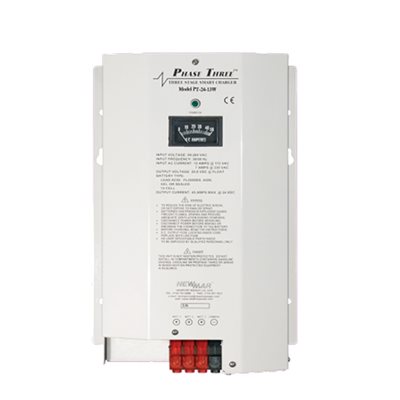

PT-24-13W 90-265VAC 24VDC
  • Output Power: 13 Amps
Request Lead time
  • $865.00
PT-24-20U 90-265VAC 24VDC
  • Output Power: 20 Amps
Request Lead time
  • $1,335.00

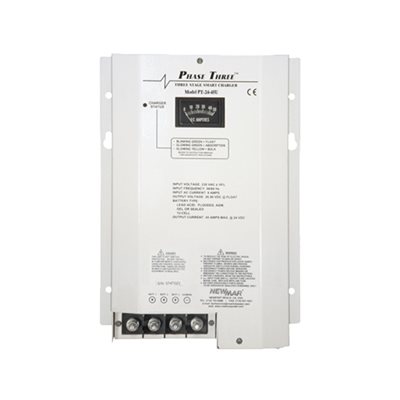

PT-24-45U 90-265VAC 24VDC
  • Output Power: 45 Amps
Request Lead time
  • $2,185.00
PT-24-60W 240VAC 24VDC
  • Output Power: 60 Amps
Request Lead time
  • $3,040.00

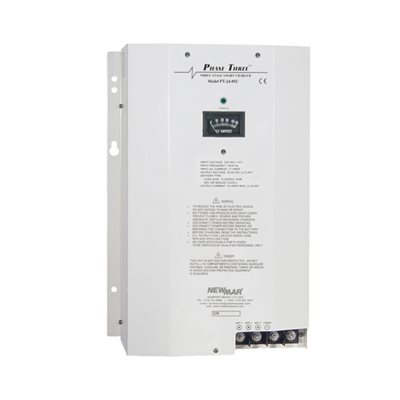

PT-24-95U 90-265VAC 24VDC
  • Output Power: 95 Amps
Request Lead time
  • $3,420.00
