- BCA610 Battery Charger 12VDC 40A

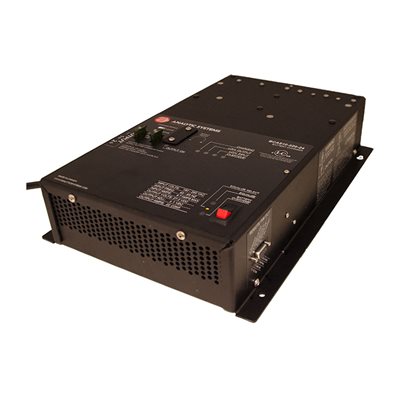

BCA610 Battery Charger 12VDC 40A
Model: BCA610-110-12
Input 105-125VAC @ 8A, 45-65Hz
Output 13.6VDC @ 40A
Dimensions 14.5"L x 9.9"W x 3"H, Weight 7.2 lbs
Product Overview:
BCA610 series chargers feature 600 watts of precision charging power for 1, 2 or 3 banks of batteries at 12, 24, 32, 36, 48 or 72(rail) volts DC. Models are available to operate from 110, 250 or 300 volts DC.
All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.
Standard Features:
Output 13.6VDC @ 40A
Dimensions 14.5"L x 9.9"W x 3"H, Weight 7.2 lbs
Product Overview:
BCA610 series chargers feature 600 watts of precision charging power for 1, 2 or 3 banks of batteries at 12, 24, 32, 36, 48 or 72(rail) volts DC. Models are available to operate from 110, 250 or 300 volts DC.
All models feature user selectable 2-stage or 3-stage charging profiles, temperature compensation and user initiated equalization for optimum charging and maximum battery life.
- 600 watts of charging power
- Isolated DC DC Charger
- One, two or three bank charging at 12, 24, 32 or 48VDC
- Manual equalization mode
- Two or three stage charging profiles
- Low EMI
- Adjustable float voltage
- Temperature compensation
- Three year warranty
