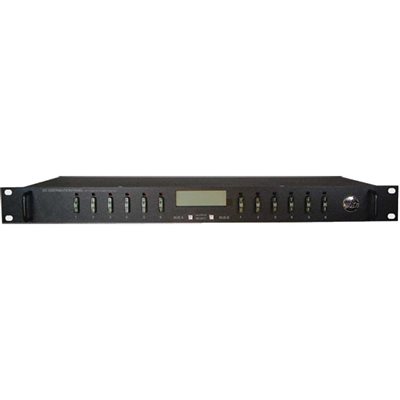

Dual Bus DC Load Distribution Panels, S3

Model: ICT200DF-12IRC

Operating Voltage 10-80 VDC
Dual Bus Output Fuse Panel with 12 ATO Fused DC Outputs
TCP/IP Remote Management and Power Control
Dimensions: 9.29"L x 19"W x 1.72"H, Weight 7 lbs

Product Overview:
The ICT DISTRIBUTION SERIES 3 provides independent dual bus capability for redundant systems or mixed-voltage sites. Each bus is rated at 100A peak and provides six fuse protected outputs.
Intelligent models include ICT's industry leading TCP/IP remote management and power control features.

Standard Features :
  • 200A peak system current rating / 100A per bus
  • Six outputs per bus
  • Independent Form C alarm contacts for each bus
  • Fuse protected models
  • 80 volt rated FKS ATO style fuses or high-quality, reliable hydraulic/magnetic breakers support 12, 24 and 48VDC
  • Mixed voltages and polarities can be supported in one panel (provided grounds are common)
  • -30 to +60C operating temperature range
  • 2 year warranty
Intelligent Model Features:
  • TCP/IP remote management and power control of system and individual outputs
  • On-board web server means no software to maintain
  • Remote firmware update capability
  • HTTPS, SMTP, SNMP protocols supported
  • Monitoring and alarm reporting of each output for pinpointing of issues with connected loads
  • Each output has adjustable load-shed settings
  • Network Watchdog feature will ping a pre-determined I.P. address and power-cycle connected device if not answered
  • Five digital inputs for site monitoring sensors
  • Data logging & Password protection
$1,021.00
  • Features : Rackmount
  • Availability: In stock
