Freedom SW Inverter/Charger 24VDC 2000W
Model: FREEDOMSW2024 (815-2024)
Input 24VDC, Range 20-32VDC
Output 120VAC, 60Hz
Includes 50A Charger & Transfer Switch
Dimensions 7.75"H x 13.5"W x 15.25"L, Approx. Shipping Weight 66 lbs
Product Overview
Xantrex Freedom SW Inverter/Chargers are the most advanced and capable inverter/chargers in the mobile market. Available in 3000W with 80A charger and 2000W with 55A charger or 100A charger. These units are packed with features like “Generator Support Mode” which enables the Freedom SW to assist a generator when AC loads exceed the generator’s capacity.
Standard Features:
Output 120VAC, 60Hz
Includes 50A Charger & Transfer Switch
Dimensions 7.75"H x 13.5"W x 15.25"L, Approx. Shipping Weight 66 lbs
Product Overview
Xantrex Freedom SW Inverter/Chargers are the most advanced and capable inverter/chargers in the mobile market. Available in 3000W with 80A charger and 2000W with 55A charger or 100A charger. These units are packed with features like “Generator Support Mode” which enables the Freedom SW to assist a generator when AC loads exceed the generator’s capacity.
Standard Features:
- Parallel stacking capability to double the inverter power output
- Series stacking capability enables operation of 240 Vac appliances
- Advanced configuration options for customized applications*
- Built-in transfer switch automatically transfers between inverter power and incoming AC power
- True sine wave output to operate sensitive electronics
- Power factor corrected multi-stage charger for fast, efficient charging
- Temperature compensated charging for all climate conditions
- Ignition lockout feature helps minimize unnecessary battery drain**
- Full inverter output up to 40°C (104°F) for 3000W model; 30°C (86°F) for 2000W model
- Conformal coated circuit boards to protect against humid environments
- Dual input / Dual output AC interface (3000 W model only)
- Compatible with the Xantrex Automatic Generator Start*** (Part#809-0915)
- Meets CSA, UL458 (with marine supplement), ABYC and FCC Part 15, Class B requirements
- Two year limited warranty

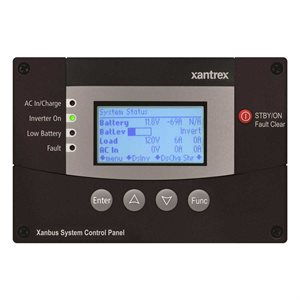

(*A System Control Panel is required for all system configuration and setup. **When used with the remote panel. ***Sold separately.)
Technical Support Call: 1-800-670-0707
Freedom SW 24V Specs.pdf Freedom SW 12V 24V Owner's Guide.pdf Technical Support Call 1-800-670-0707 Freedom SW 12V 24V Installation Guide.pdf
