Standard DC/DC Converter 20-50VDC to 12VDC 10A

Input 20-50 VDC
Output 13.6 VDC, 10 Amp Peak/Continuous
Dimensions 4.5"H x 5.9"W x 11"D, Weight 4 lbs

Product Overview

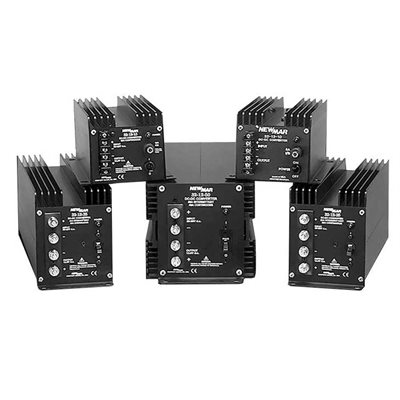

Newmar standard DC/DC converters are available from 20-50 VDC to 12 or 24 VDC negative ground output. They are ideal  for powering communication/navigation equipment, on negative ground systems and voice and data transceivers in mobile applications.

Standard Features :

• Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within rating.
• Heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and long life of components.
• Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum case with heavy duty shock mounts assure survival in hostile environments.
• Numerous converter and load protection circuits: Current limiting; automatic thermal shutdown; short circuit proof; reverse polarity and overvoltage protection.
