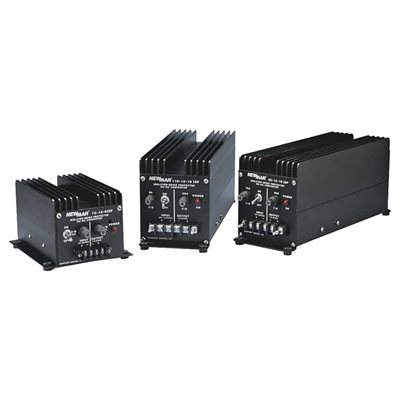

ISP DC/DC Converter 80-140VDC to 12VDC 10A

Input 80-140 VDC
Output 13.6 VDC, 18/10 Amp Peak/Continuous
Dimensions 6"H x 4.6"W x 13.7"D, Weight 8 lbs

Product Overview
ISP Series offer the benefits of an isolated converter plus protection against line transients and voltage spikes typically caused by large DC motors and switching transients often encountered on forklifts, locomotives and light rail. A special circuit clamps input spikes to a safe level, protecting both the converter and the powered equipment.
This product series is further enhanced with extra rugged construction of case and internal components for severe vibration applications.

Standard Features :

• Reverse polarity protection
• Input fuse
• Output fuse
• Current limiting, short circuit proof output
• Automatic resetting thermal shutdown
• Input transient protection - ISP Series only
• High/low input voltage shutdown
• Polyurethane conformal coating on PC board
• Power “ON” light
• On/Off switch
