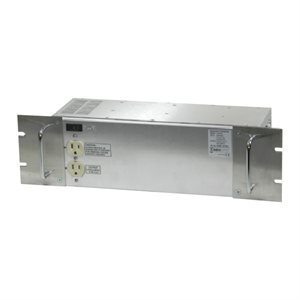

Frequency Converter 3-Phase 1500VA 115VAC 400hz

Model: FC1500-400/3-RM

Isolated Input 115/230VAC Autoranging, 1Ø, 47-410Hz
Output 200/115VAC, 3Ø, 400Hz, 7.5A 3Ø, 4.3A per phase
Input/Output Connections via Hardwired Screw Type Terminals
Dimensions 5.2”H x 17”W x 16”L, 19" Rackmount, Approx. Shipping Weight 33 lbs

Product Overview:
The FC 400hz 3-Phase Series are highly compact AC/AC frequency converters. Suitable for a wide range of applications. They feature full electronic protection, high efficiency and low output noise.

Standard Features:
  • Universal Input
  • 1500VA or 3000VA of Output Power
  • 3-Phase
  • Compact size, light weight
  • Pure sine wave
  • Full electronic protection
  • Ultra quiet & highly reliable
  • 2 year warranty
Model Input Voltage VAC Output Voltage VAC Others Availability Qty Price
FC1500-400/3-RM 90-265VAC 115VAC, 400Hz
  • Output Power: 1500VA
Request Lead time
  • $5,095.00
FC3000-400/3-RM 90-265VAC 115VAC, 400Hz
  • Output Power: 3000VA
In stock
  • $6,325.00
