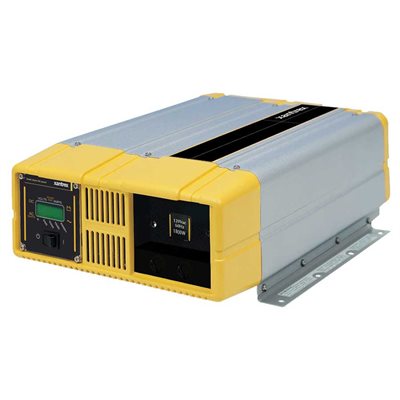

PROsine Inverter 12VDC 1000W GFCI

Model: PROSINE1000/12GFCI (806-1000)

Input 12VDC, Range 10-16VDC
Output 120VAC, 60Hz, with GFCI Duplex Outlets
Dimensions 4.5"H x 11"W x 15.4"D, Approx. Shipping Weight 20 lbs

Product Overview
Xantrex PROsine Inverters deliver true sine wave output. Ideal for handling sensitive loads, and for electrical systems that already have a quality multistage battery charger. Their 120-volt, 60 Hz AC power output is capable of handling both heavy duty and smaller, multiple AC loads. Xantrex  PROsine Inverters include a removable LCD display panel.

Standard Features Prosine Inverters:
  • 1000 and 1800 watt inverters (1500 and 2900 watt surge capability).
  • True sine wave AC output (crystal controlled).
  • Total Harmonic Distortion (THD) of 1% (typical), PROsine 1000 and 1800 inverters deliver true sine wave output that is identical to AC power supplied by your utility.
  • Ideal for handling sensitive loads and improves AC equipment performance.
  • Removable LCD display can be mounted remotely for control and monitoring.
  • Unique DC terminals offer 180-degree connections for easy installation in tight places.
  • Powersave mode draws only 1.5 watts under no load.
  • Available in 12 and 24 volt models.
  • Models available with GFCI AC outlet or AC hardwire terminal strip for permanent installation into an electrical system (optional 15 A transfer switch available with hardwire option).
  • Remote interface kit for remote mounting of display module.
  • Two year warranty.

Technical Support Call: 1-800-670-0707

Model Input Voltage VDC Output Voltage VAC Others Availability
PROSINE1000/12GFCI (806-1000) 12VDC range 115VAC
  • Output Power: 1000W
  • Options: GFCI
Request Lead time
PROSINE1800/12GFCI (806-1800) 12VDC range 115VAC
  • Output Power: 1800W
  • Options: GFCI
Request Lead time
PROSINE1800/12HWTS (806-1802) 12VDC range 115VAC
  • Output Power: 1500W
  • Options: HW & Transfer
Request Lead time
PROSINE1800/24GFCI (806-1850) 24VDC range 115VAC
  • Output Power: 1800W
  • Options: GFCI
Request Lead time
PROSINE1800/24HW (806-1851) 24VDC range 115VAC
  • Output Power: 1800W
  • Options: HW
Request Lead time


Freedom X/XC GFCI Outlet Option Kit
  • $32.00
  • Availability: In stock
