Input 20-80VDC
Output 13.6VDC, 10A
Ruggedized & Wide Temp (-40°C to +55°C)
Dimensions 4.85"L x 4.13"W x 1.03"H, Shipping Weight 2 lbs

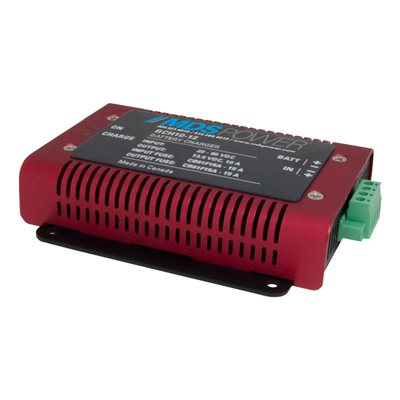

Product Overview:The BCH10 Step Down series of Battery Chargers supply up to 10 amps of charging current at 12, 24, 36 or 48 volts from any higher voltage between 20 and 80 volts DC for use in automotive, heavy equipment, marine, industrial, rail or alternative energy environments.
Standard Features: - ‘Output ON’ and “Charging” LED indicators
- Up to 80V input
- Compact size and easy mounting
- Simple plug in wiring
- Reverse input protection, reverse battery connection protection, and output over-voltage protection
- Optional Heavy duty ruggedization with wide temperature range
- Custom output voltages available
- Five year warranty
Analytic Systems
