Input 120/208/240/480VAC, 1Ø, 60Hz
Output 24/48/130VAC @ 50A
NEMA Type-1 Style Enclosure
4 Wheel Heavy Duty Hand Cart
Dimensions 53.5"H x 29.4"W x 20.25"D, Approx. Shipping Weight 390 lbs

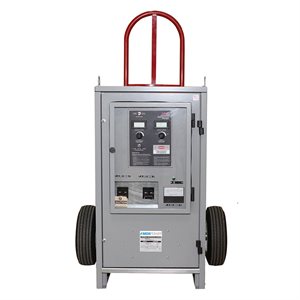

Product Overview:The Universal Maintenance Charger (UMC) is a standby constant voltage battery charger designed to provide temporary replacement for a battery charger that needs repair or refit, charging for a new installation of a battery bank waiting for charger installation, or batteries in storage and emergency replacement for a catastrophic failure of a dc bus. Offering instant mobility and availability.
Standard Features: - AC input accepts 120, 208, 240 or 480 Vac at 60Hz, single phase
- 24 - 130Vdc variable voltage output voltage
- 50 amp model output current
- Battery eliminator filtering
- SCR based rectification technology
- 2% analog ammeter for monitoring ac input current
- Input circuit breaker
- 1% digital dc output ammeter
- Output circuit breaker
- 200mVrms max. ripple allows the charger to operate without a battery connected
- 5 year warranty
HindlePower
