Input 90-290VAC, 45-65Hz, Terminal Input
Output 42-58VDC, 2x50A Output Breakers
Controller, 2x25A Rectifier Modules, 50A Total
Dimensions: 19”W x 10.38”D x 1.74”H, 1U
Approx. Shipping Weight: 33 lbs
Product Overview:

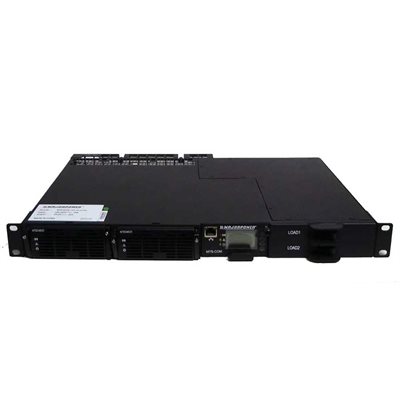

The Majortel 1U System is a sleek, compact design that is ideal for applications requiring dc power.
Each system is designed to occupy a true 1U (1.75” tall) rack space in a standard 19” wide rack and under 11”deep. Typical installations include two compact, high density and reliable switch-mode rectifiers, 25 amps each for a total system capacity configuration of 2900W.
The MTS48/50AT-1U includes a simple load and battery breaker set-up for a bulk feed configuration.
Standard Features:
- Wide AC Range; Full Power with 120/208/240 VAC
- Extended Temperature Operations; Up to 75°C
- Programmable Alarms on Dry-Contacts
- Integrated Remote Communication Package
- Easy, Manageable Monitor Screen
- Quick Check LED Indications
