Heavy Duty Series 12VDC Power Supply 35A

Model: 115-12-35CD

Nominal Input 115/230 VAC 50/60 Hz
Output 13.6 VDC (Adjustable 12.6-14.5 VDC), 35 Amp Peak/Continuous
Dimensions 6.5"H x 9.5"W x 14"D, Weight 32 lbs

Product Overview

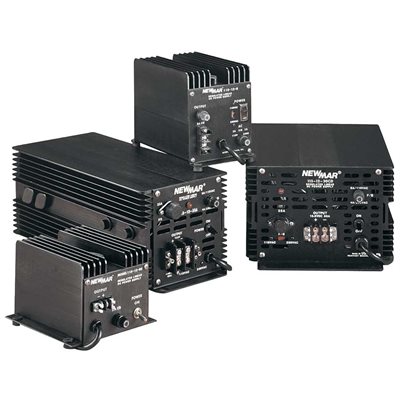

Newmar Heavy Duty Series Power Supplies are super-rugged DC supplies ideal for powering 12 and 24 volt communication equipment in base stations, remote sites ans mobile communication applications where reliability is essential.

Standard Features :
  • Excellent Regulation and Ripple Spec: Output voltage maintained within 1% under all line and load conditions within rating
  • Polyurethane conformal coated PC board and corrosion resistant heavy duty aluminum case with integral shock mounts assures survival in hostile environments
  • Heat generated by semi-conductors is extracted and dissipated by large heat sink fins for cool operation.
  • Protection: overvoltage, current limit; (set @ 105% of intermittent rating), thermal overload and input/output fusing.
  • Thermally activated cooling fan on “CD” units.
Model Input Voltage VAC Output Voltage VDC Output Power Availability Quantity
115-12-35CD 90-265VAC 12VDC 35 Amps Request Lead time
115-24-18CD 90-265VAC 24VDC 18 Amps Request Lead time
115-24-35CD 90-265VAC 24VDC 35 Amps Request Lead time
